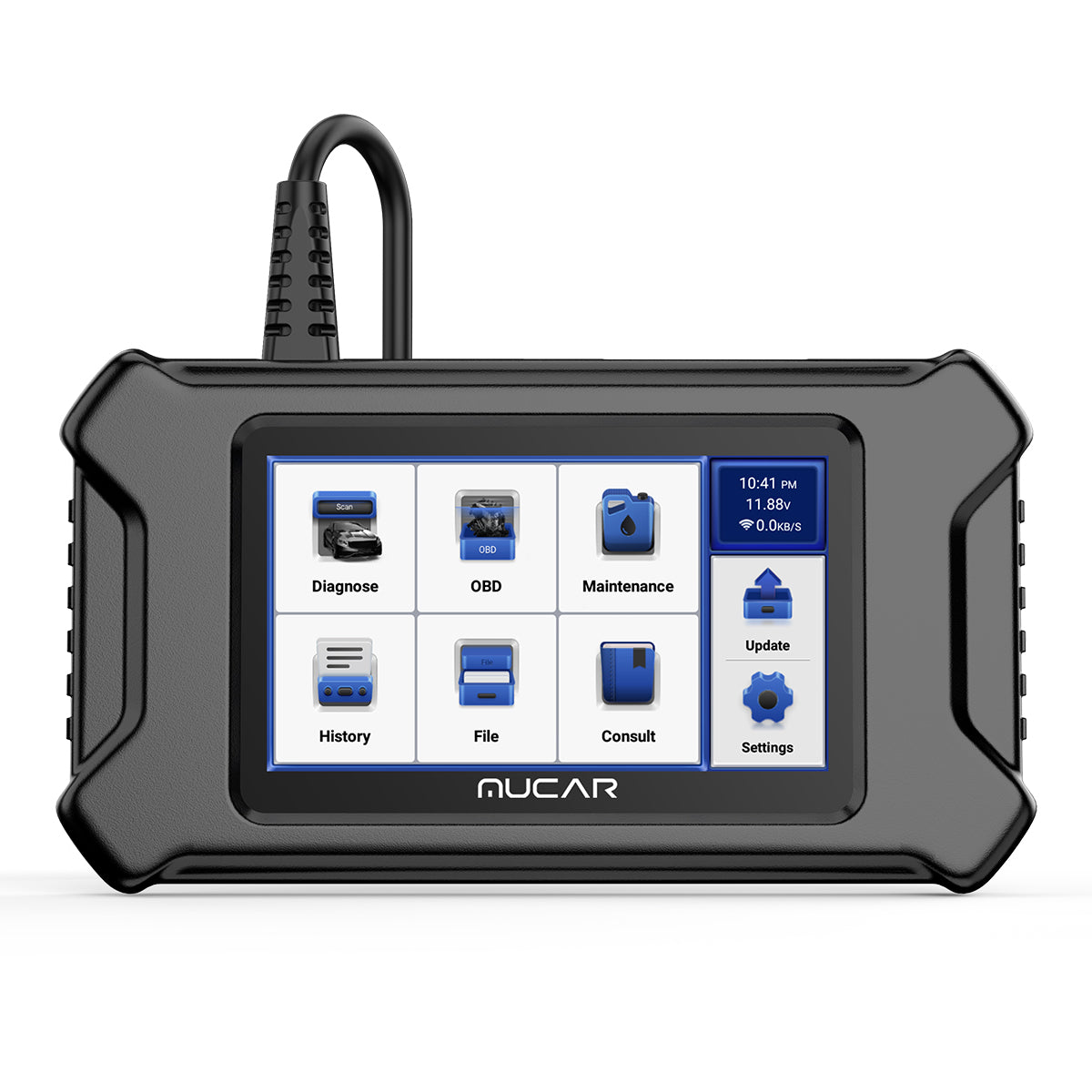

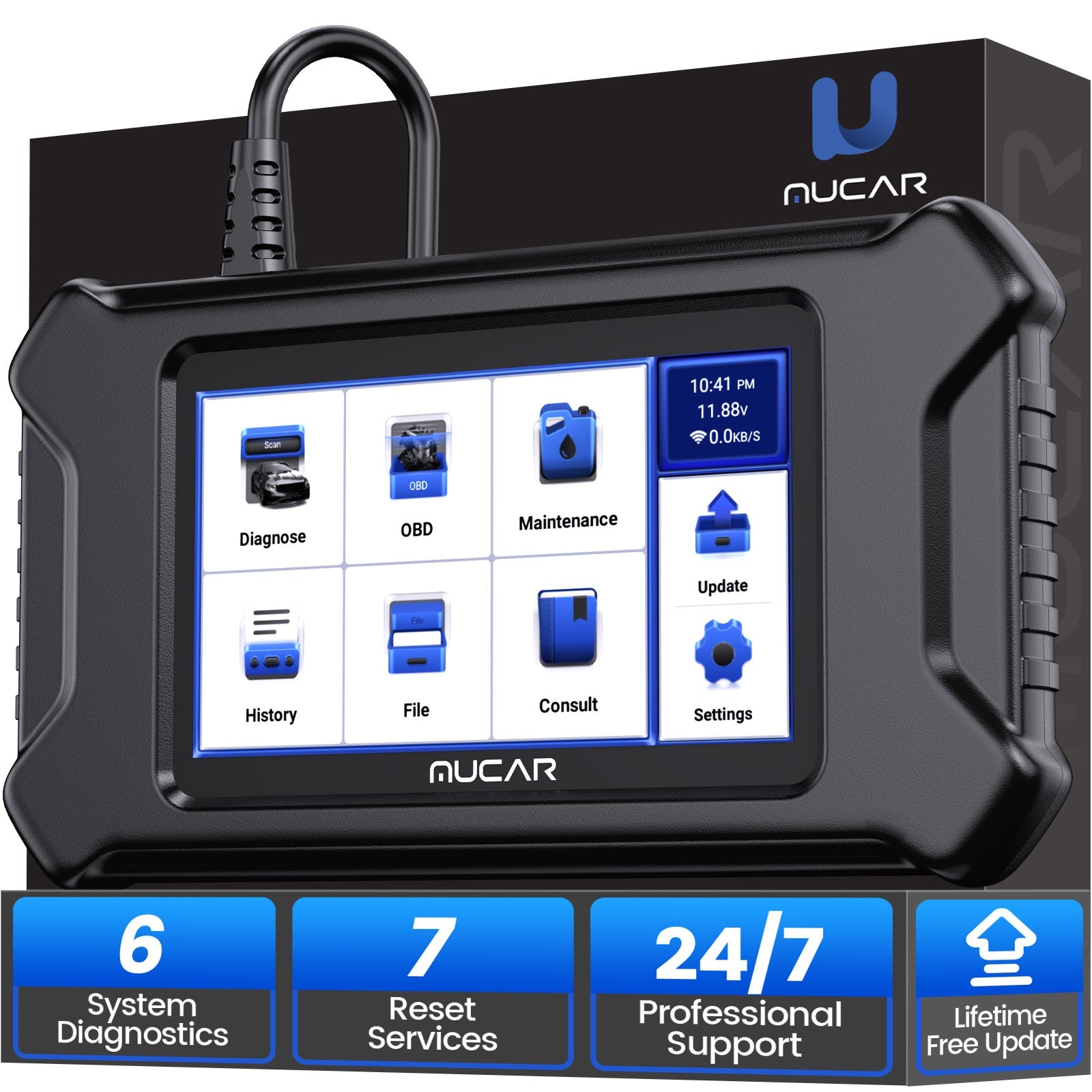

MUCAR CS6
- £119.95
£149.95- £119.95
- Unit price
- per
• 7 Reset Service Functions
• 6 System Diagnoses
• Full OBDII Diagnostic Functions
• Worldwide Vehicle Coverage
Fast Shipping
2-7 Days Fast Shipping to US/EU
24/7 Remote diagnosis
12-Month Warranty
30-Day Free Returns

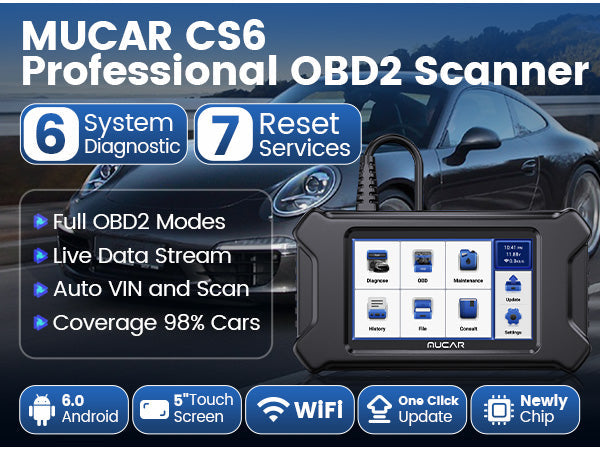

Why Choose MUCAR CS6?
MUCAR CS6 is a new generation of high-end DIY car diagnostic tools based on the Android system, which can realize free upgrades of the diagnostic software online for life. Its main functions include not only OBD/EOBD standard protocol diagnosis, but more importantly, it has professional vehicle diagnosis software and maintenance software, which can comprehensively diagnose the ABS/SRS/ECM/TCM/BCM/TPMS system of more than 1,00000 vehicles, and support 7 reset functions, Oil/EPB/SAS/TPMS/ETS/ABS/DPF , lifetime free for all cars.
Support 6 System Diagnostic Lifetime Free Update
MUCAR CS4 owns LIFE-TIME FREE abs/srs/engine/transmission diagnoses. Quick to figure out the problem, very useful and professional for all drivers, DIYER, repair shops.
Diagnose ECM (Check Engine) System:
Quickly determine the cause of the Engine System, and turn off the warning light. It also retrieves current, permanent, and pending codes in the vehicle engine system, What's more, it also shows critical OBD II standard extended data, such as fuel, emissions data, and other real-time manufacturer-specific parameters in the engine system for making sure it works correctly and safely.
Diagnose ABS (Anti-lock Braking) System:
Read and clear the error code in the ABS and turn off the warning light. It retrieves ABS codes to make braking more smooth, consistent and safe. It also performs live data streams in the ABS that allow the user to monitor and diagnose critical ABS systems to ensure that repairs to this critical system are effective and complete.
Diagnose SRS (Airbag) System:
Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.
Diagnose TCM(Auto Transmission) System:
AT(automatic transmission) system is one of the powertrain control modules,but some issues like un-working electronic accessories and broken transmission computer will keep your transmission light flashing. It's hard to locate the accurate error within limited time. Fortunately, this car error code reader transmission scanner will assist you to have a fast scanning of your vehicle and read the fault code easily, shutting down the warning light within minutes when you finish the repair.
BCM( Body Control Module) System Diagnosis
Body control module will directly let you know about a system that has malfunctioned, as it can diagnose and report the problem. A body control module (BCM) plays a central role in a car by maintaining control over its various functions. Problems in it can cause and/or mask the problems in the other modules of a car. Troubles in this system can set off a chain of events that can incur large-scale damage to the car. Thus, it is of prime importance to look after and keep the BCM in a well maintained condition. This body control module / BCM scanner diagnostic tool will do you a favour to locate the cause and check mainly control the electrical appliances used in the car body, such as lamps, wipers, door locks, power windows, sunroofs, etc.
TPMS System
Identify whether the ID information stored in the electronic control unit is consistent with the tire pressure sensor ID to achieve communication and ensure vehicle safety.
Quickly determine the cause of the Engine System, and turn off the warning light. It also retrieves current, permanent, and pending codes in the vehicle engine system, What's more, it also shows critical OBD II standard extended data, such as fuel, emissions data, and other real-time manufacturer-specific parameters in the engine system for making sure it works correctly and safely.
Read and clear the error code in the ABS and turn off the warning light. It retrieves ABS codes to make braking more smooth, consistent and safe. It also performs live data streams in the ABS that allow the user to monitor and diagnose critical ABS systems to ensure that repairs to this critical system are effective and complete.
Safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.
AT(automatic transmission) system is one of the powertrain control modules,but some issues like un-working electronic accessories and broken transmission computer will keep your transmission light flashing. It's hard to locate the accurate error within limited time. Fortunately, this car error code reader transmission scanner will assist you to have a fast scanning of your vehicle and read the fault code easily, shutting down the warning light within minutes when you finish the repair.
Body control module will directly let you know about a system that has malfunctioned, as it can diagnose and report the problem. A body control module (BCM) plays a central role in a car by maintaining control over its various functions. Problems in it can cause and/or mask the problems in the other modules of a car. Troubles in this system can set off a chain of events that can incur large-scale damage to the car. Thus, it is of prime importance to look after and keep the BCM in a well maintained condition. This body control module / BCM scanner diagnostic tool will do you a favour to locate the cause and check mainly control the electrical appliances used in the car body, such as lamps, wipers, door locks, power windows, sunroofs, etc.
Identify whether the ID information stored in the electronic control unit is consistent with the tire pressure sensor ID to achieve communication and ensure vehicle safety.

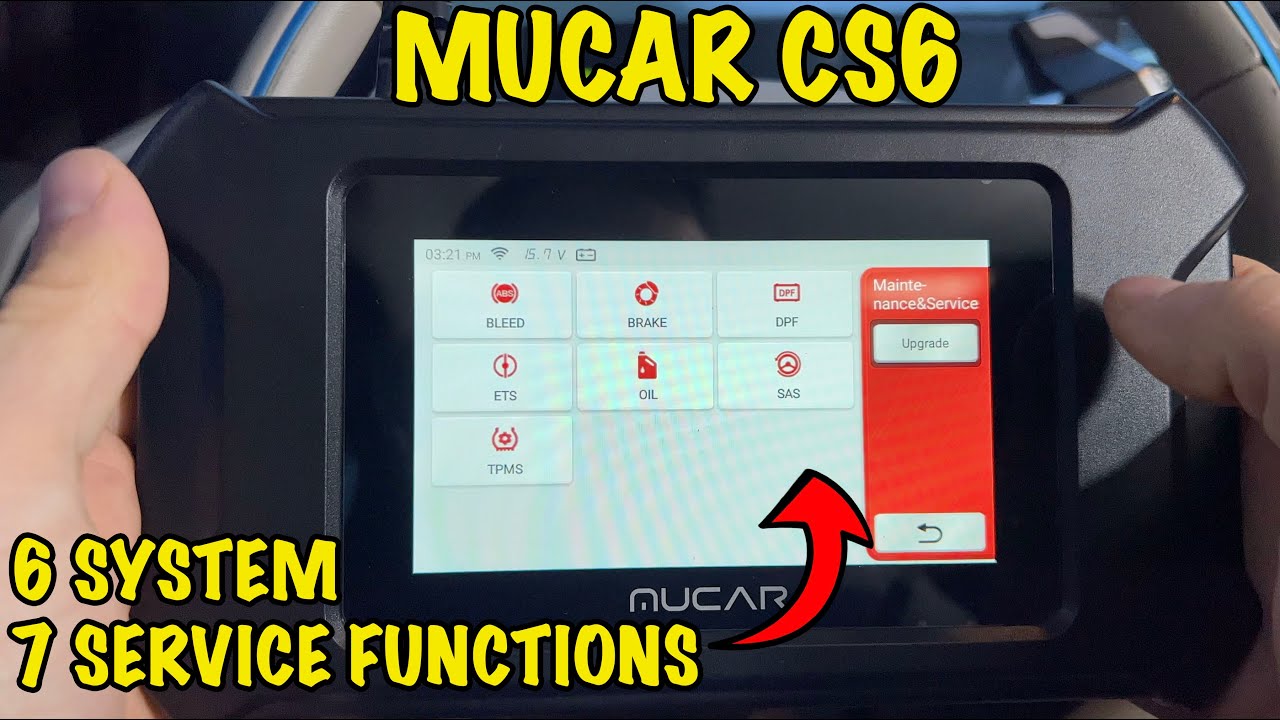

Support 7 Reset Services Resets Lifetime Free
If the oil maintenance light is on, the car needs to be maintained. After the maintenance, the driving time and other data should be reset to zero, so that the maintenance light will be turned off, and the car system will enable a new maintenance cycle.
When the brake is used to a certain thickness, the brake sensor line will be worn, and the brake pad sensor line will send a signal to the car computer to prompt the replacement of the brake pad. After replacing the brake pads, the brake needs to be reset, otherwise the car will still alarm.
Need to do the reset situation:
a. replace the brake pad and brake pad wear induction line,
b. brake pad indicator light on,
C. brake pad sensor line short-circuit repair,
d. After replacing the servomotor
After the vehicle is disassembled or replaced with parts related to the steering function, the steering Angle learning function needs to be performed.
Only applicable to vehicles without a tire pressure sensors.
If the tire pressure is too low or air leaking, replacing or installing tire pressure monitoring equipment, replacing tires, tire pressure sensor damage, and cars with tire pressure monitoring function in the case of tire transposition etc,.Tire pressure reset is required after vehicle maintenance and turn off the tire pressure fault indicator light.
Need to perform throttle matching: Replace the electronic control unit, power off the electronic control unit, replace the electronic throttle assembly, replace or disassemble the intake port, clean the throttle.
Full OBDII Diagnostic Functions
*-Read extensive current, pending and permanent codes in OBD system quickly
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Built-in DTC lookup library with cause analysis
*-Clear detected fault codes and turn off the Check Engine Light efficiently
*-View graphical live data of vehicle's computer module(s) for easy analyses
*-View the vehicle's operating parameters at the moment a DTC is detected
*-Read I/M readiness status to have a vehicle inspected for state emissions compliance
*-Perform O2 sensor test to check fuel efficiency and vehicle emissions
*-Read the results of on-board diagnostic monitoring tests for specific components/systems
*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system
*-Retrieve the vehicle information of VIN, CINs, and CVNs completely
*-Built-in DTC lookup library with cause analysis
Wide vehicle coverage and compatible with 95% of all car models from the US, Europe, and Asia.
- America:
Ford(Australia), LINCOLN, BUICK, Chrysler, GM, FORD, CHRYSTER, CADILLAC, CHEVROLET, DODGE, FIAT(BRAZIL), GM(BRAZIL), Jeep, SGM
- Europe:
AstonMartin, Benz, Sprinter, BMW, Ferrari, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Jaguar, Lambor Ghini, ALFA ROMEO, BENTLEY, BUGATTI, DR, DACIA, EUROFORD, GAZ, IVECO, IZH, JAGUAR, MERCEDES, MAYBACH, OPEL, OPEL(SOUTH AFRICA), PAZ, RENAULT, ROVER, ROLLS-ROYCE, SPRITER, UAZ, VAZ, VAUXHALL, ZAZ
- Asia:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion, IKCO, LUXGEN, MAHINDRA(INDIA), MARUTI(INDIA), MAHINDRA(INDIA), MARUTI, MVM, NISSANGTR, PERODUA(MALAYSIA), PROTON(MALAYSIA), PERODUA, PROTON(MALAYSIA), RENAULT SAMSUNG, SAIPA, TATA(INDIA), TATA, TLISUZU, UNITED PAKISTAN
Ford(Australia), LINCOLN, BUICK, Chrysler, GM, FORD, CHRYSTER, CADILLAC, CHEVROLET, DODGE, FIAT(BRAZIL), GM(BRAZIL), Jeep, SGM
- Europe:
AstonMartin, Benz, Sprinter, BMW, Ferrari, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Volkswagen CV, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Bugatti, Citroen, Dacia, Jaguar, Lambor Ghini, ALFA ROMEO, BENTLEY, BUGATTI, DR, DACIA, EUROFORD, GAZ, IVECO, IZH, JAGUAR, MERCEDES, MAYBACH, OPEL, OPEL(SOUTH AFRICA), PAZ, RENAULT, ROVER, ROLLS-ROYCE, SPRITER, UAZ, VAZ, VAUXHALL, ZAZ
- Asia:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion, IKCO, LUXGEN, MAHINDRA(INDIA), MARUTI(INDIA), MAHINDRA(INDIA), MARUTI, MVM, NISSANGTR, PERODUA(MALAYSIA), PROTON(MALAYSIA), PERODUA, PROTON(MALAYSIA), RENAULT SAMSUNG, SAIPA, TATA(INDIA), TATA, TLISUZU, UNITED PAKISTAN
Live Data Stream Analyse in Graph
The scan tool shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.
Data recording functionality is amazing, customer can record the live data stream for up to 10, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format. Playback supports two graphs (independent) or 4 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.
Auto VIN Scan--Make you identifies cars quickly.
Online Maintenance Resources--Operating skills, DTC Help, Automotive Technology handbook, Repair Case and How-to Videos.
Data recording functionality is amazing, customer can record the live data stream for up to 10, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format. Playback supports two graphs (independent) or 4 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.
Auto VIN Scan--Make you identifies cars quickly.
Online Maintenance Resources--Operating skills, DTC Help, Automotive Technology handbook, Repair Case and How-to Videos.
Parameter
CPU: MT6580 CORTEX-A7 1.3GHz/4Core
Memory: 1GB DDR3/16GB EMMC
Display: 5 Inch/ 480*854 MIPI LCD Display Screen
TP: GT911 GFF
WIFI: 802.11b/g/n 2.4GHz
USB: TYPE C*1
TF Card: Support SDHC High-Speed Card
Battery: 3.7V / 600mAH Lithium Polymer
Power Input: OBD 12V input or TYPE C 5V input
Memory: 1GB DDR3/16GB EMMC
Display: 5 Inch/ 480*854 MIPI LCD Display Screen
TP: GT911 GFF
WIFI: 802.11b/g/n 2.4GHz
USB: TYPE C*1
TF Card: Support SDHC High-Speed Card
Battery: 3.7V / 600mAH Lithium Polymer
Power Input: OBD 12V input or TYPE C 5V input
Packing List
1* MUCAR CS6 Host
1* Manual
1* Charging cable
1* Manual
1* Charging cable
