£419.95
£539.95
£419.95

• No Subscription Required
• Supports Tools Expand Features, such as TKEY101 key programmar, THINKTPMS, endoscopes, etc
• ECU Coding & Bi-Directional/Active test
• All System Diagnostic with Bluetooth Dongle
• Support CAN-FD & DOIP protocol
• 35+ Maintenance Functions
• AutoVIN & AutoScan, quick diagnostics
• AutoAuth for FCA SGW
• 8″ Touchscreen & 2.4G/5G WiFi Update
• Bigger memory, RAM:4G, ROM:64G

Subtotal: £419.95

Fast Local Delivery

UK: Ship from the UK

30-Day Free Returns

24/7 Remote diagnosis

Video
Video
x





Supported Vehicles
Supported Vehicles
x

THINKSCAN 689BT

THINKSCAN 689BT

£539.95 £419.95

THINKSCAN 689BT

£539.95 £419.95

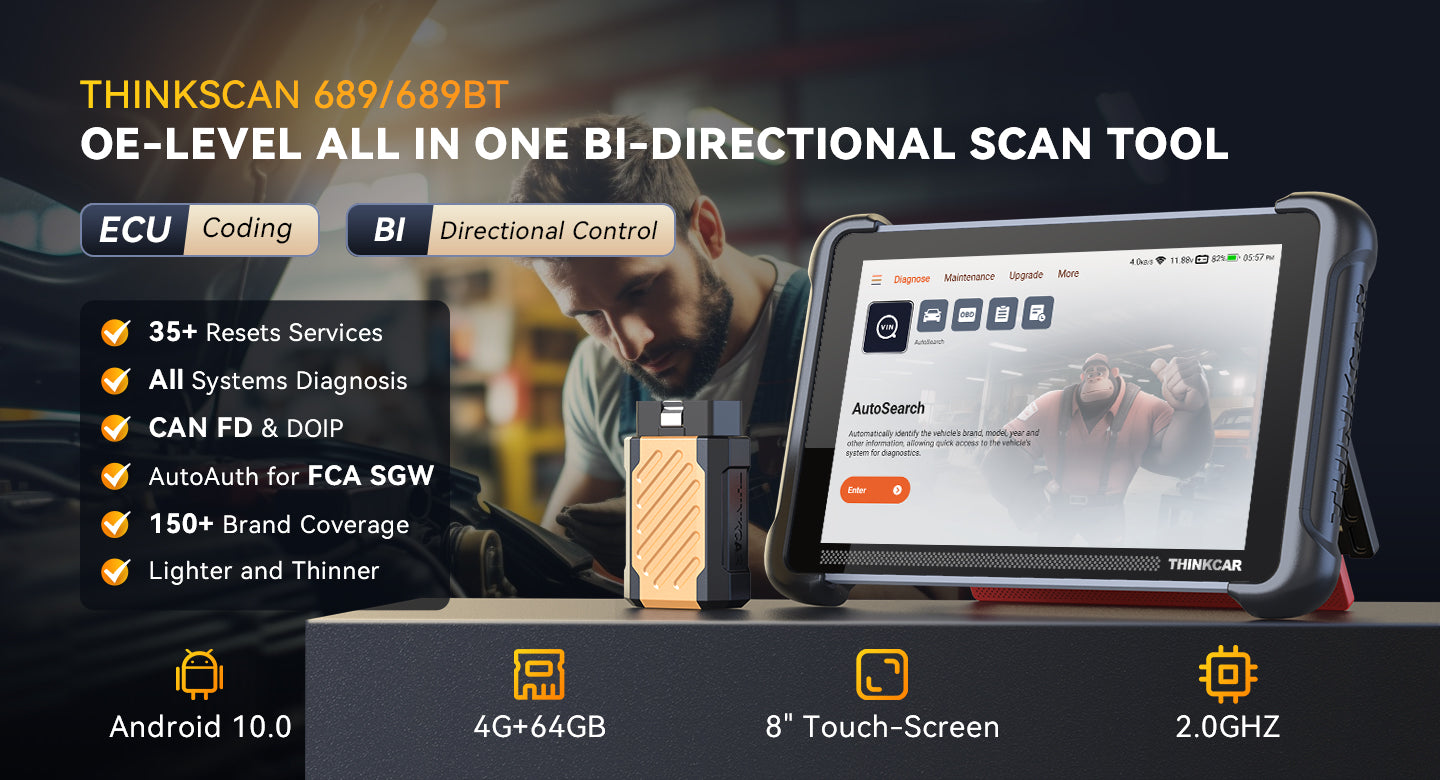

Why Recommend Buying Our Thinkscan 689BT automotive scan tool?

  • Unprecedented processing speed. Cortex-A53 4-core chip(5X faster) + BT-WIRELESS + 8" screen
  • FCA AutoAuth + CANFD&DOIP Covers 99.99% of car models
  • ECU Coding + 34 Reset + Bi-Directional, help you find and solve problems quickly and accurately
  • OE-level full system diagnostic: read fault codes for all system ,such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, Fuel System, Light System, Wiper System
  • Lighter and thinner, one-click activation, no registration required, more convenient to use.

    • Unprecedented processing speed. Cortex-A53 4-core chip + BT-WIRELESS

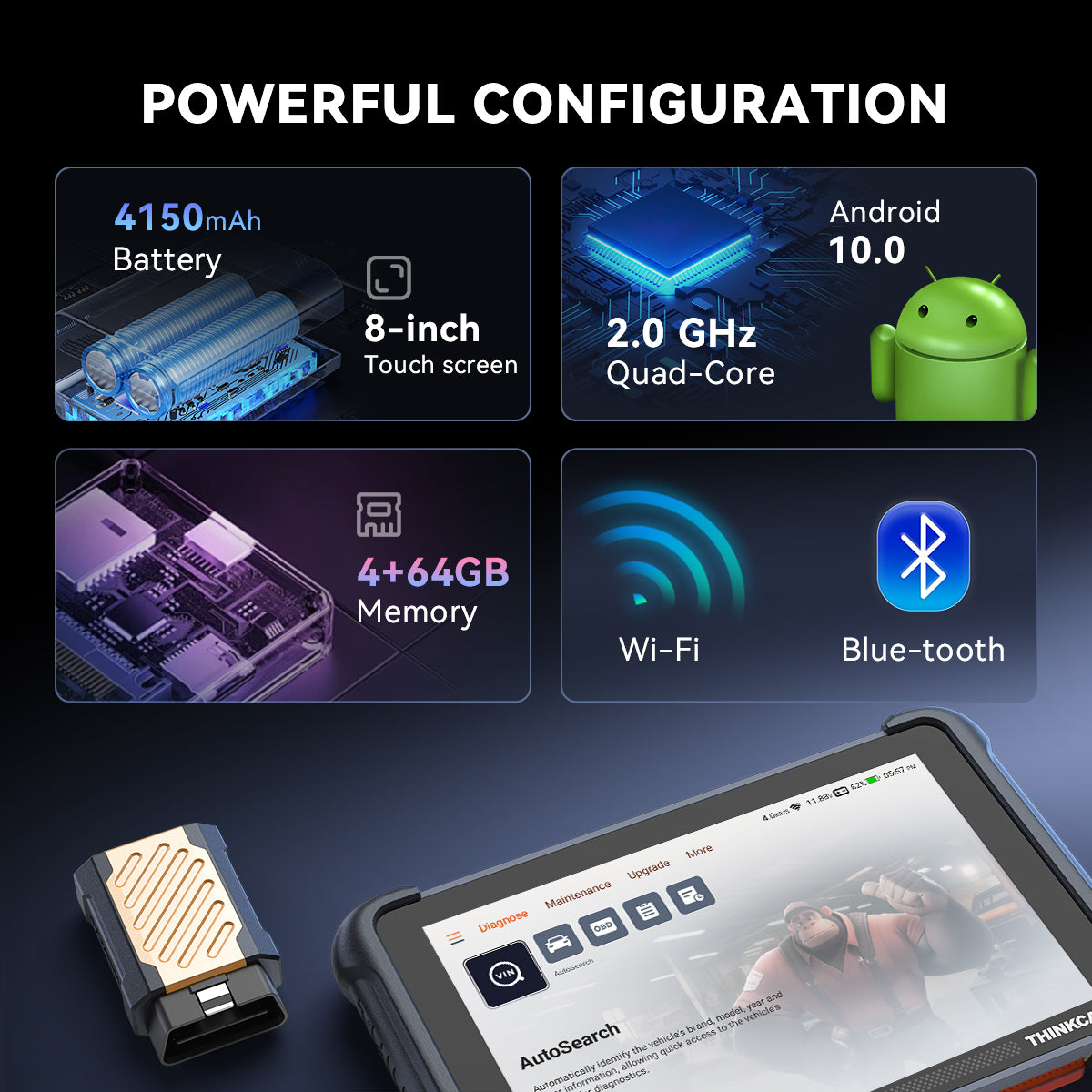

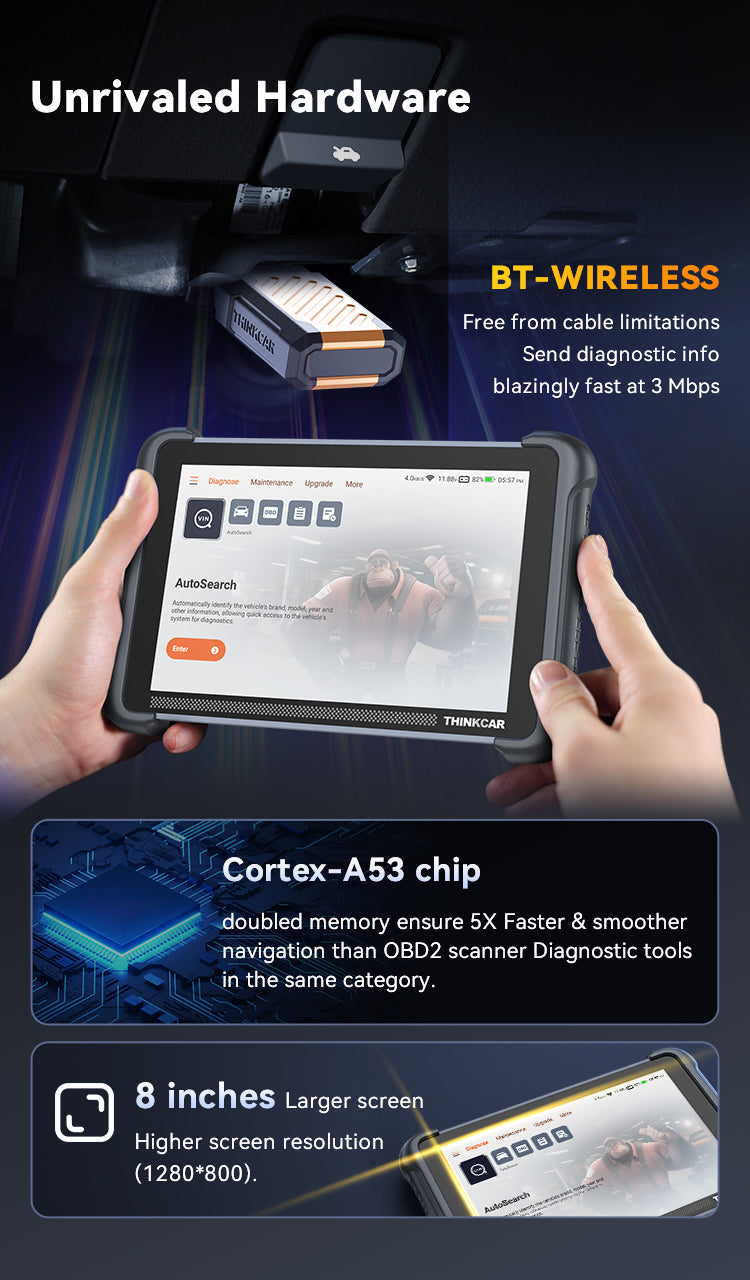

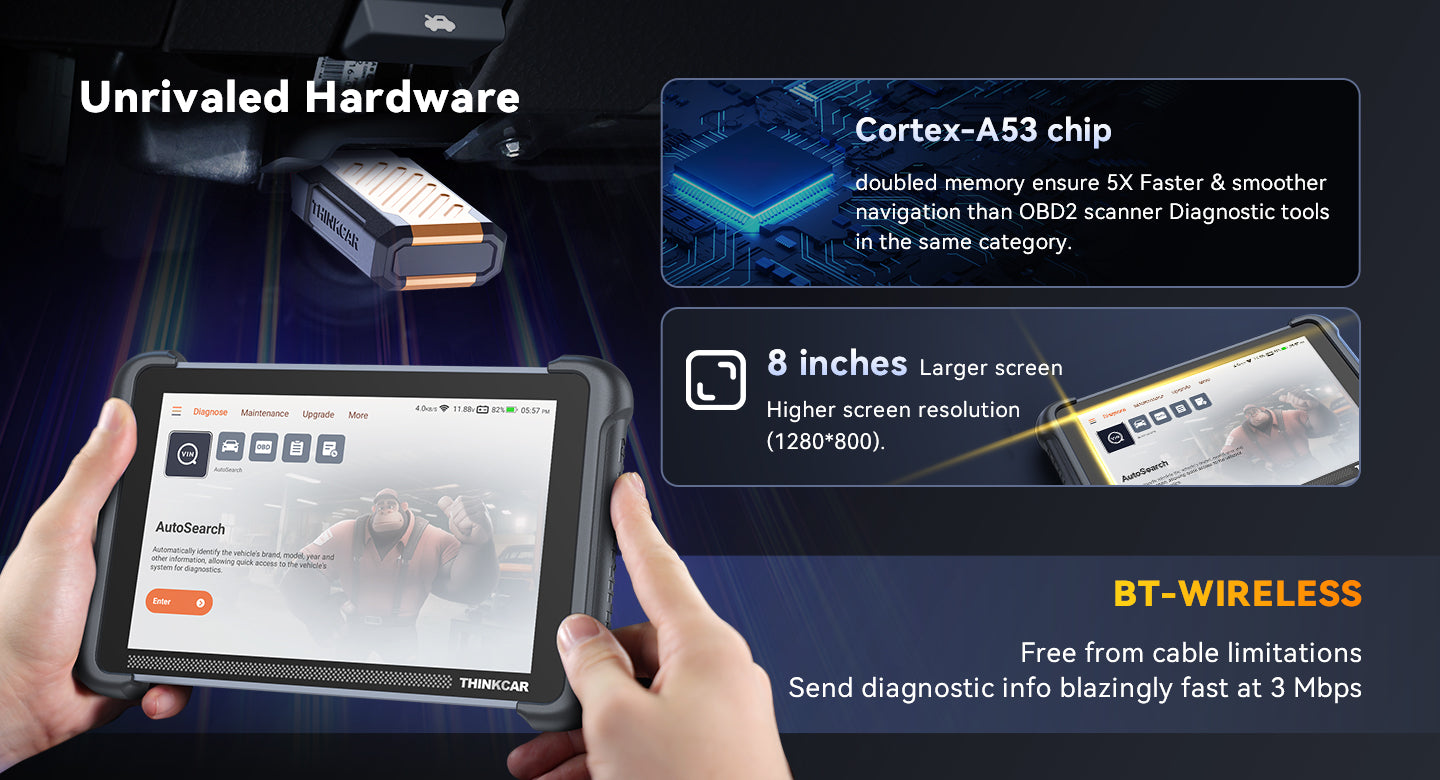

    Unrivaled Hardware:
    Cortex-A53 chip + doubled memory ensure 5X faster & smoother navigation than OBD2 scanner diagnostic tools in the same category. Larger screen (8 inches), higher screen resolution(1280*800).
    Bt-Wireless:
    Free from cable limitations
    Send diagnostic info blazingly fast at 3 Mbps

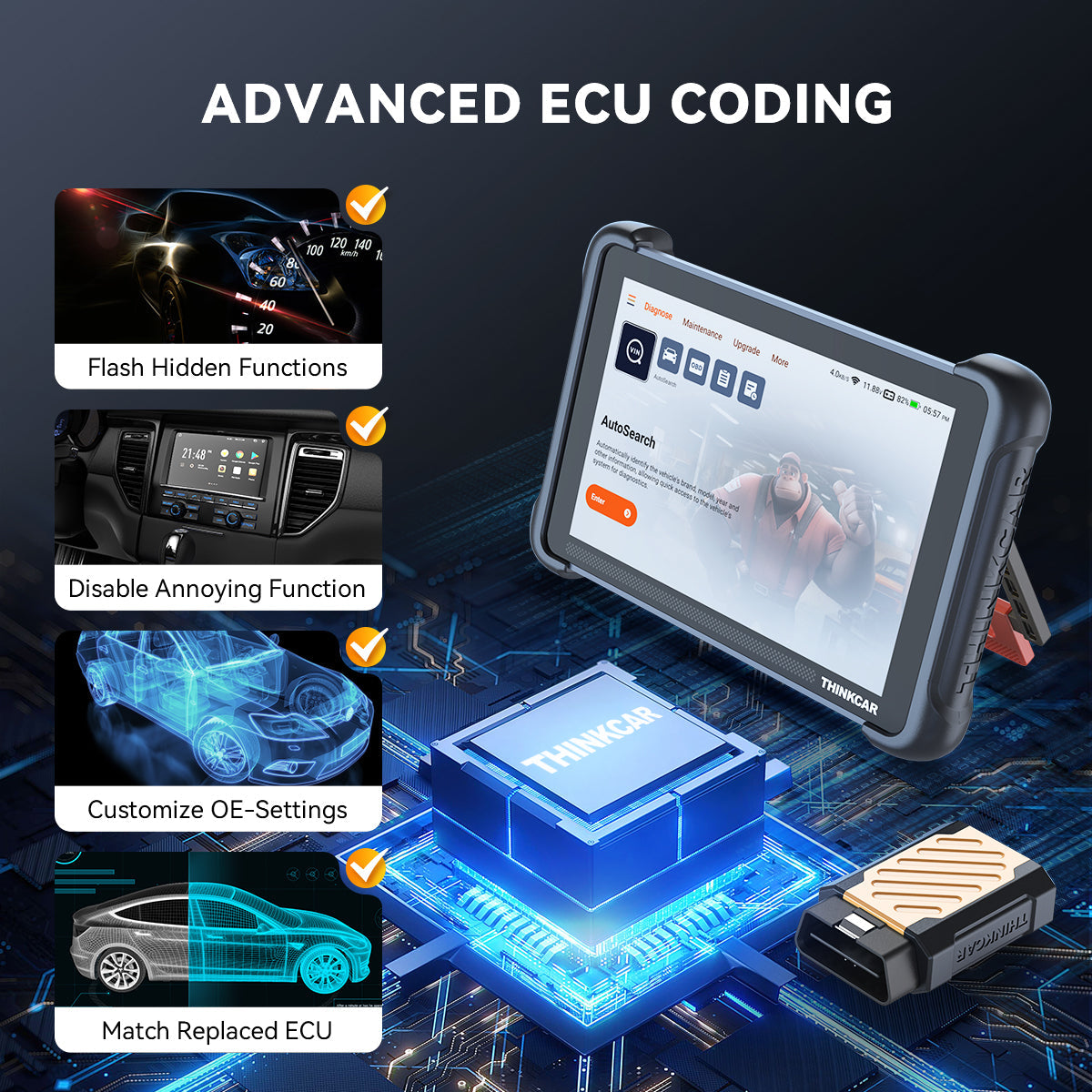

    ECU Coding (Customize)

    OE-level ECU Coding: Master & Open Full Potential of Your ECUs.
    THINKCAR Thinkscan 689BT automotive scan tool also features the advanced ECU coding that most aftermarket obd2 scanner diagnostic tools do not support. You can address the following issues:
  • Match Settings after Replacement – After replacing the ECU/module, you need to match, learn, code, or even program the replacement before it functions normally. Otherwise, the car cannot start or some parts cannot work normally.
  • Open/Close Car Functions (Personalization, Flash Hidden Functions) – With this car scanner diagnostic for all cars, you can access and modify certain hidden or advanced settings in a vehicle to make your general model a deluxe car.
  • Using Scenario – Model: Ford Focus. Operation: you can modify some of original car features, such as how long the interior light stays on after you close the door, or whether the horn honks when you use your remote lo-cks.
  • More Applications – Revised fu-el consumption calculation, seat belt alarm, automatic start/stop, hidden menu, daytime running lights, cruise control, automatic loc-king and unlo-cking of the central lo-ck, comfortable windscreen washer, welcome light and others.
  • Restore Functions if Data Loss – By restoring the current car settings back to the default status, to fix complex ECU-controlled issues including low fu-el efficiency, mysterious power loss, unknown fault in mechanical parts, etc.
  • Modifications/Changeover – Make personalized modifications to your car's per-formance, appearance, or both. It offers a wide range of popular modification options, including converting halogen to xenon headlights, altering tire size, automating manual electric control systems, upgrading steering gear, and more.
  • Aftermarket Installation – Add new auto parts into an older vehicle to outfit it with some modern luxuries. For example: help add retrofit TPMS kits to older or non-TPMS-equipped vehicles.
  • Programmable Module Installation (PMI) – Mainly for For-d models. Make adaptive procedures for new ECU modules after replacement to ensure their normal functionalities.

    • Bi-directional/Active Tests: Get Easy Troubleshooting, No Hassle Work

    THINKCAR Thinkscan 689BT is a full bidirectional scan tool. By operating this Thinkcar scanner directly to send commands, you can test individual components for faults without using the vehicle’s own controls. This is great for identifying malfunctioning sensors, valves, and components. Quick and precise. 3X faster than testing manually.
    Also Refer As – Functional Tests, Actuator Tests, Inspection Tests, System Tests or the like. Reinitialization and repr0gramming can be included in the list of bidirectional controls.
    Who Is It For? – A must for any auto professional, whether you own a service or repair shop or are a DIY car enthusiast. An accurate and fast bi-directional diagnostic scan tool for all vehicles is designed to smooth your workflow.
    Benefits – can significantly reduce the diagnostic effort and easily see if the issue is happening in the controls or within the vehicle system. Complete Coverage – can active 99% vehicle-specific systems, subsystems, and components such as relays, coils, injectors, and actuators like “Adaptive Headlamp Adjustment, A/C Configuration, Window Wipers Settings, Doors Turn On/Off, Sunroof Switch On/Off, Mirrors Folding/Unfolding, Active Tests on Interior Lights, Inside Mirrors, Door Lo-cking, Steering Wheel Heating, Windows, Horn, ABS Pump Motor, Cooling Fan, Relays, etc.” Using Scenario – Model: T-oyota Prius. Problem: The fan that cools the hybrid battery isn’t working. Testing Procedure: Using this scanner for car to command the fan to turn on. After turning the fan on, if the scan tool shows the fan speed is 0 RPM, it means that despite having power the fan cannot get turning at all. This helped you diagnose some corroded fan wiring quickly without tearing the vehicle apart, saving much effort and time. More Applications – Injector Buzz Test, Oil Pressure Control Test
    Cooling Fan Test, Window/Wiper/Sunroof/Door L-ock/Headlamp Test, Interior Lighting Test
    EVAP Tests: EVAP Purge/Seal HVAC Calibration, Vehicle Level Position Calibration, Modulate Throttle
    Cycling A/C Clutch Relay, Cycling ABS Motor Pump, Cycling

    Support 35+ Maintenance Functions:

    Thinkcar Thinkscan 689BT automotive scan tool is a complete all-system diagnostic tool that you can use to perform all crucial advanced service functions. This is super beneficial for auto technicians and advanced DIYers. You can use it to solve almost any problems that cars typically face.
  • 1. AdBlue Reset
  • 2. Adaptive Front Lighting
  • 3. Airbag Reset
  • 4. A/F Reset
  • 5. ABS Bleeding
  • 6. Battery Matching
  • 7. Gearbox Relearn
  • 8. Brake Reset
  • 9. Clutch Matching
  • 10. Coolant Bleed
  • 11. DPF Regen
  • 12. ECU Reset
  • 13. EGR Adaption
  • 14. Electric Throttle Relearn
  • 15. FRM Matching
  • 16. Gateway Module Data Calibration
  • 17. Gear Learn
  • 18. Immobilizer Reset
  • 19. Injector Coding
  • 20. Language Change
  • 21. NOx Sensor Reset
  • 22. ODO Meter
  • 23. Oil Maintenance Reset
  • 24. Rainfall Light Sensor
  • 25. Steering Angle Reset
  • 26. Seats Calibration
  • 27. Stop/Start Reset
  • 28. Sunroof Reset
  • 29. Air Level Calibration
  • 30. TPMS(Reset)
  • 31. Transport Mode
  • 32. Turbocharging Matching
  • 33. Tyre Reset
  • 34. Windows Calibration
  • 35. ODO Check
    • Note: the specific reset functions supported may vary depending on vehicle models and software versions. If you need to know the support status of a specific model, please check the product manual, official website https://www.mythinkcar.com/coverage/checklist , or contact customer service.

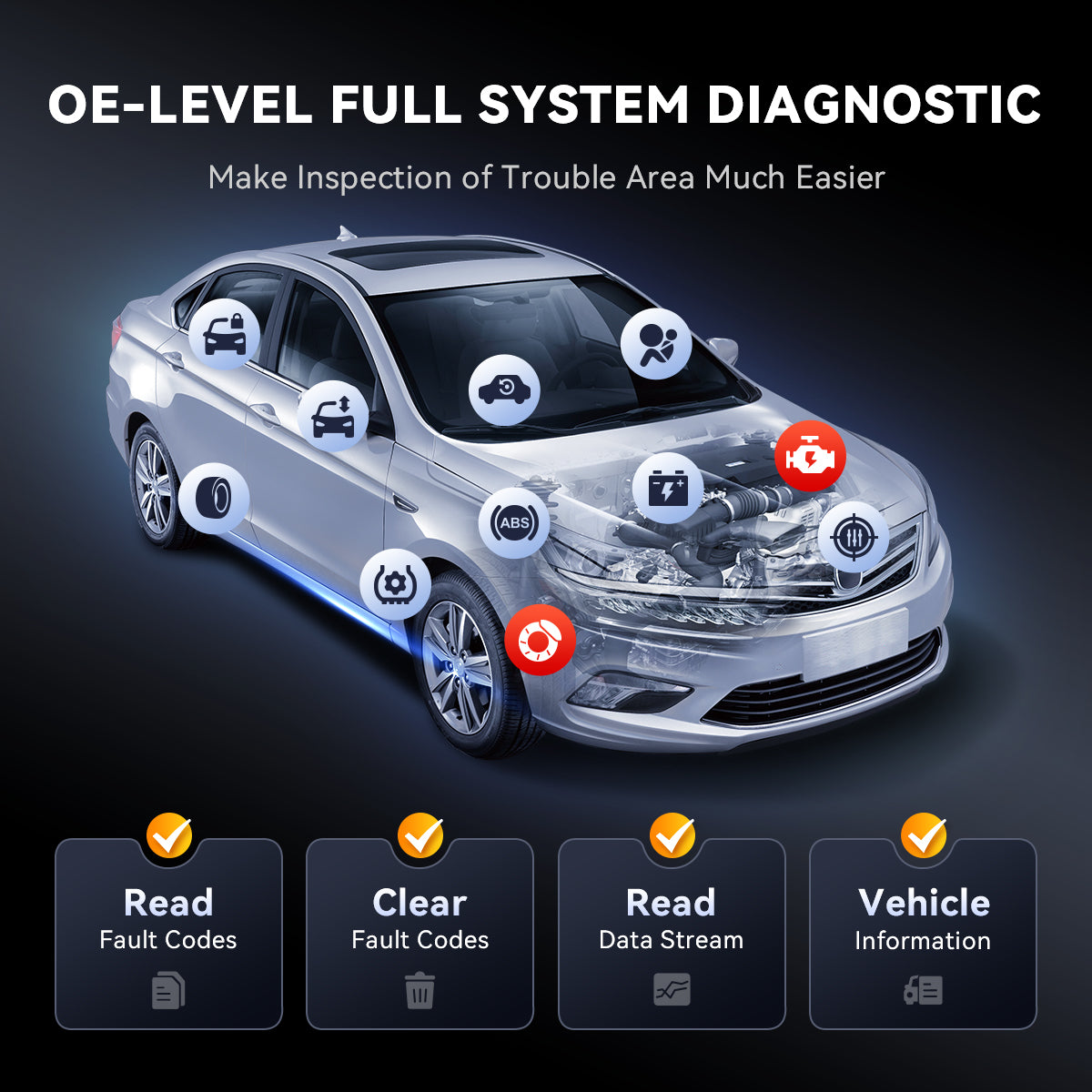

    OE-level Full System Diagnostic

    All Systems Diagnosis for 150+ car brands
    This diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
    -Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications etc.
    -Read & erase DTCs to locate problem areas and clear the codes.
    -View Live Data of each parameter item.

    The following is a list of modern vehicle systems that this scan tool can get access to:
    -Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
    -Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System,
    -Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
    -Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
    -Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics
    and more ...

    CAN-FD & DoIP Support

    These one-station obd2 scanner diagnostic tool works across 99% major cars around the world, including the modern cars with protocols of tomorrow: CAN-FD, compatible with 2020- G-M & Chrysler Models; DoIP, compliant cars including Volvo, Land Rover/Jaguar, BM.W F/G chassis, etc. Welcome to reach out to us anytime to get the full compatible car list.

    2017+ FCA SGW Access

    Another highlight of this Thinkcar scanner is its strong worldwide car coverage: even working on 2018+ FCA SGW-equipped vehicles (compatible with Fiat/Chrysler/Alfa Romeo/Dodge/Je-ep, etc.) You’ll have equal power as the scan tool does on non-SGW-equipped vehicles: clear codes, active tests, actuation & relearns and more. Just register with built-in AutoAuth services.

    Expand Features with Tools

    Thinkscan 689BT can work with:
    1, THINKTPMS VENU iPro or Thinktpms G2
    2, Endoscope
    3, Oscilloscope
    4, Printer
    5, Bluetooth battery clip

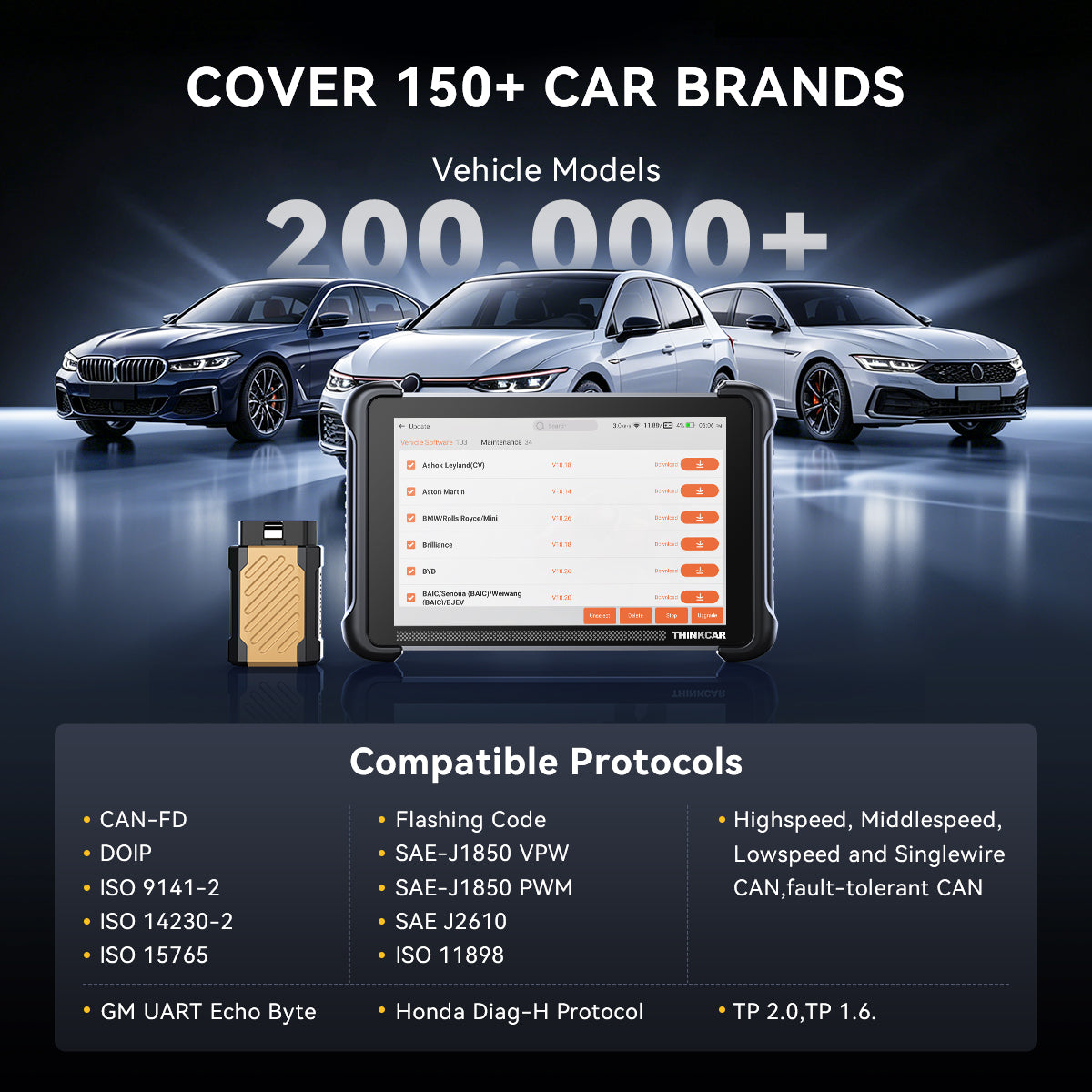

    Support multiple protocols & 28 Languages

    Compatible Protocols: CAN-FD; DOIP; ISO 9141-2; ISO 14230-2; ISO 15765; Flashing Code; SAE-J1850 VPW; SAE-J1850 PWM; SAE J2610; ISO 11898; Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN; GM UART Echo Byte; Honda Diag-H Protocol; TP 2.0, TP 1.6.

    28 Languages: English, French, German, Dutch, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Arabic, Greek, Slovak, Chinese Traditional, Korean, Turkish, Czech,Romanian, Swedish, Croatian, Persian, Serbian, Danish, Bulgarian, Vietnamese，Finnish，Slovenian.

    Parameter

    Display: 8" display
    Resolution: 1280*800 pixel
    Battery Capacity:4150mAh/3.8v
    Bluetooth: BT5.0
    Working Environment: 0~50℃ (32~122℉ )
    Storage Environment: -20~60℃ (-4~140℉ )
    Working voltage:9~18V
    Working current: ≤1.2A
    Warranty: 12 months

    Packing List

    1. THINKSCAN 689BT OBD2 Scanner
    2. Bluetooth Dongle
    3. User Manual
    4. 3-in-1 Charger
    5 .TYPE-C Charging Cable
    6. RJ45 Network Cable
    7. F-Chassis
    8. USB2.0 to 10/100MNetwork Cable
